Introduction to YTML

YTML (YouTube Markup Language) is a custom markup language designed to simplify video creation by defining animations, voiceovers, timing, and transitions. It extends HTML capabilities with additional semantic tags to manage video production workflows, supporting seamless integration with audio and visual assets.

Key Principles

• ✅ HTML Compatibility: YTML is a superset of HTML, allowing seamless use of HTML elements and CSS animations.
• ✅ Custom Tags: Provides video-specific tags for music, voiceovers, transitions, and reusable components.
• ✅ Flexibility: Enables dynamic timing, reusable components, and conditional logic for scripting.

---

🚀 Installation

YTML requires Python 3.8+ and can be installed via pip:

pip install ytml-toolkit

⚠️ Note: In some cases, you may need to install Playwright for headless browser support.
Run the following command if you encounter issues:

playwright install

---

✨ Example YTML Script

Below is a basic example of a YTML script:

<config>
  FRAME_RATE=30 VIDEO_WIDTH=1920 VIDEO_HEIGHT=1088 ENABLE_AI_VOICE=True
</config>

<composite id="intro">
  <frame duration="3s">
    <div>Welcome to my channel!</div>
  </frame>
  <voice start="0.5s" end="4s">Hello and welcome to my channel.</voice>
  <music src="background.mp3" loop="true" start="0s" end="10s" />
</composite>

The above script will:

1. Display the text "Welcome to my channel!" for 3 seconds.
2. Play a voiceover saying "Hello and welcome to my channel."
3. Add background music starting at 0 seconds and looping.

---

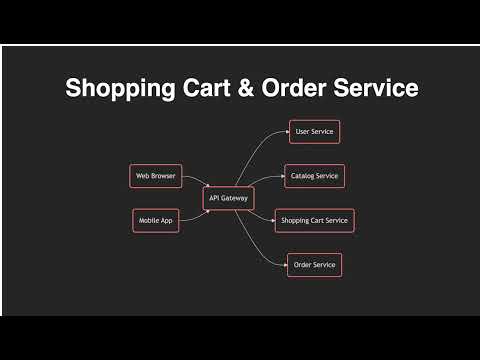

🎬 Sample Output Video

Here’s an example of a video generated using YTML:

---

🛠️ YTML CLI Commands

YTML provides a CLI tool to convert .ytml scripts into video files.

Basic Usage

ytml -i input.ytml -o output.mp4

This command:

• Takes input.ytml as input.
• Generates output.mp4 as the final video.

CLI Options

Option	Description
-i, --input	Path to the YTML input file
-o, --output	Output video file (default: output_video.mp4)
--use-gtts	Uses gTTS VocalForge instead of Eleven Labs for voice generation
--skip	Skips specific steps (parse, voiceover, render, sync, compose)
--resume	Resume a job using the provided UUID
--job	Job ID of voiceovers to mix (Requires --skip voiceover)
--preview	Preview HTML output only
--version	Show CLI version
--verbose	Enable detailed logging

Example Usages

• Skip rendering & voiceover steps:

  ytml -i script.ytml -o output.mp4 --skip render voiceover

• Resume a previously stopped job:

  ytml --resume 123e4567-e89b-12d3-a456-426614174000

• Preview the HTML structure instead of rendering a video:

  ytml -i script.ytml --preview

• Enable verbose logging:

  ytml -i script.ytml -o output.mp4 --verbose

---

⚙️ YTML Configuration

YTML allows custom configurations through the <config> section.

Example Config Block

<config>
  FRAME_RATE=30 VIDEO_WIDTH=1920 VIDEO_HEIGHT=1088 ENABLE_AI_VOICE=True
  DEFAULT_TRANSITION_EFFECT="fade" AI_IMAGE_STYLE="3D" LOG_LEVEL="DEBUG"
</config>

---

📂 Asset Management in YTML

YTML automatically includes predefined CSS, JavaScript, and animation files at the start of every script. These assets help maintain styling, enable animations, and integrate interactive components.

Default Assets

YTML appends the following assets to every script:

CSS Files

{
  "css": ["css/merge_conflict_styles.css"]
}

JavaScript Files

{
  "js": ["js/mermaid_init.js", "js/prism.js"]
}

Animation Files

{
  "animations": ["js/typewriter_effect.js"]
}

Handling Additional Assets

• All referenced files in a YTML script (CSS, JS, images, sounds, fonts) must be placed inside the assets/ directory.
• When using custom styles or animations, update the <config> section:

  <config>
    HTML_ASSETS = { "css": ["css/custom_styles.css"], "js":
    ["js/custom_script.js"], "animations": ["js/new_animation.js"] }
  </config>

🔑 Setting Up AI Voice Generation

YTML supports AI-generated voiceovers via Eleven Labs API. To enable it:

1. Set up your API key:

   export ELEVEN_LABS_API_KEY="your-api-key-here"
2. Ensure AI voice is enabled in the YTML script:

   <config> ENABLE_AI_VOICE=True AI_VOICE_ID="yDUXXKsu0jF5vdJnWAPU" </config>

If no API key is set, YTML will fall back to Google Text-to-Speech (gTTS).

---

⚙️ YTML Configuration

YTML allows custom configurations through the <config> section. Here’s an overview:

Example Config Block

<config>
  FRAME_RATE=30 VIDEO_WIDTH=1920 VIDEO_HEIGHT=1088 ENABLE_AI_VOICE=True
  DEFAULT_TRANSITION_EFFECT="fade" AI_IMAGE_STYLE="3D" LOG_LEVEL="DEBUG"
</config>

Configuration Options

Setting	Description	Default
FRAME_RATE	Video frame rate	30
VIDEO_WIDTH	Output video width	1920
VIDEO_HEIGHT	Output video height	1088
ENABLE_AI_VOICE	Enables AI-generated voiceovers	True
DEFAULT_TRANSITION_EFFECT	Default video transition	"fade"
AI_IMAGE_STYLE	Style for AI-generated images	"3D"
LOG_LEVEL	Logging level (DEBUG, INFO, etc.)	"INFO"

---

🛠️ Config File Loading

YTML can read configurations from a file and override default values.

Example: Reading Configurations

from ytml_config import get_config_from_file

config = get_config_from_file("script.ytml")
print(config.FRAME_RATE) # Prints the frame rate from the script

YTML extracts <config> sections and applies them dynamically.

---

🎯 Summary

✅ YTML simplifies video creation with a markup-based approach
✅ Installation via pip install ytml-toolkit
✅ Use ytml -i input.ytml -o output.mp4 to generate videos
✅ Supports AI voices via ELEVEN_LABS_API_KEY
✅ Configuration available via <config> section
